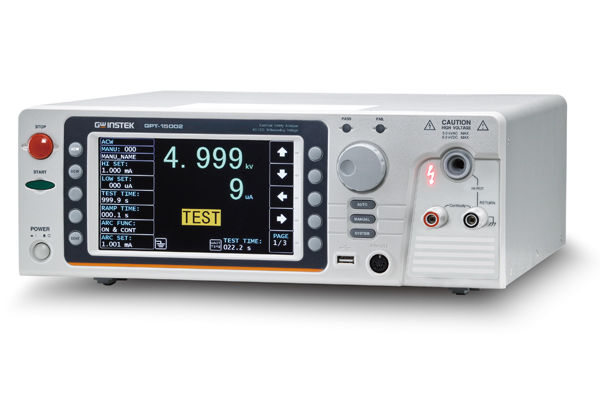

GPT-15000 Electrical Safety Analyzer
Description
GW Instek introduces
the flagship model (500VA output capacity) safety analyzer-the
GPT-15000 series, which is the first safety analyzer in the world to
comply with IEC 61010-2-034 (Safety requirement for electrical
requirement for measurement, control and laboratory use – particular
requirements for measurement equipment for insulation resistance and
test equipment for electric strength), which stipulates that the
requirements of the software and hardware interfaces must be
followed while designing high voltage and insulation resistance test
and measurement instruments so as to ensure that users are provided
with necessary protection and warning while using the
instruments.
Analyze Your Safety Tests
- Meets IEC 61010-2-034 design
requirements
- High Accuracy and High Resolution Testing
Performance
- Flexible supplementary testing
mechanism
- Statistic and analysis
- Sweep and tabular automatic test
- Complete test data retrieval interface
Features
- 500VA AC Test Capacity (short circuit current
> 200 mA)
- Comply with IEC 61010-2-034
- 7”TFT LCD
- Manual / Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to
47μF
- Statistics & Analysis Function
- Sweep Function for DUT Characteristic
Analysis
- Convenience Listed AUTO mode easy to read
result & judge
- Internal Storage & USB Storage
available
- Barcode Function available
- Setting Data Export / Import
- Rear panel output available
- Interface : RS-232C, USB host/device, Signal
I/O and option GPIB or LAN
- Universal power input
