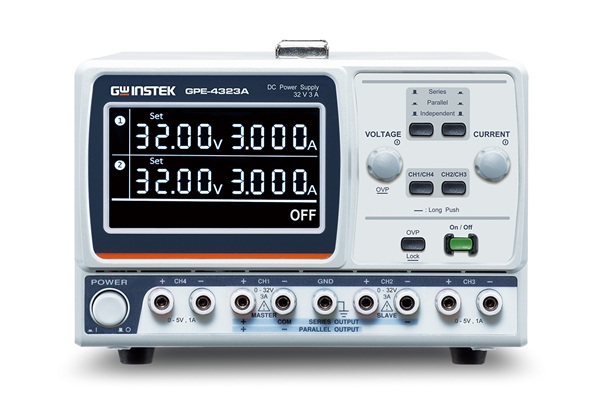

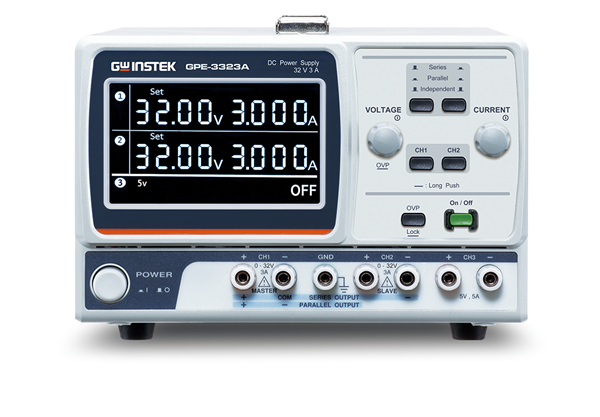

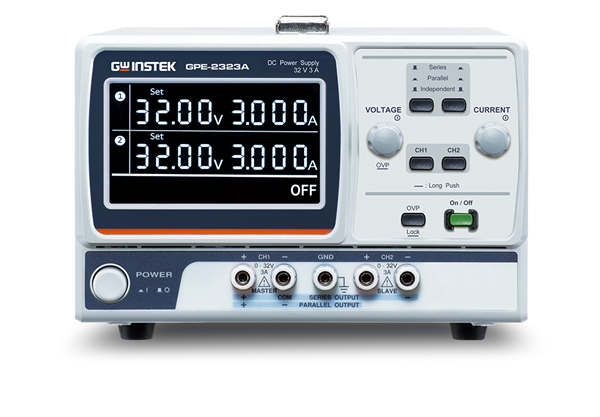

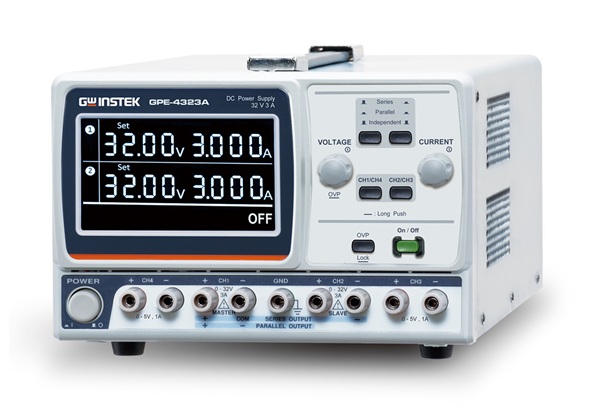

GPE-X323A Series Multiple Output Linear D.C. Power Supply
Description
The GPE-X323A series DC power supply is the latest iteration of the GPE-X323 series, building upon its proven quality and reputation.
A key improvement in this iteration is the overvoltage protection (OVP). Unlike the previous GPE series, which relied on a single maximum voltage threshold for activation, the new A series allows independent OVP voltage settings for each channel: CH1/CH2：1 V to 36 V；CH3：5.5 V (GPE-3323A)；1 V to 6 V (GPE-4323A)；CH4：1 V to 16 V (GPE-4323A).
These refinements make the A series a more flexible and precise for multi-channel applications.
Common features of GPE-X323A and GPE-X323 series
The X in X323 can be 2/3/4, representing dual-channel, triple-channel, or quad-channel.
Output power from 192 watts to 217 watts
High Resolution
Low Noise
Voltage Recovery Time：≤ 100 µs (50 % load change, minimum load 0.5 A)
Key Lock Function
Features
- 2 / 3 / 4 independent isolated output
- 4.3-inch LCD display
- Recovery time: ≤ 100 µs (50% load change, minimum load 0.5 A)
- Setting & readback resolution: 10 mV / 1 mA
- Output ON / OFF control
- Analog control (Remote I/O) for output ON / OFF
- Key lock function
- Tracking series and parallel operation
- Optional European jack type terminal
Description
The GPS-Series is 2-4
channel, 180 to 200W output, linear DC power supplies. Overload and
reverse polarity protection, and an output on/off switch keep the
GPS-Series and their load safe from unexpected conditions. A High
regulation (0.01%+3mV) and low ripple/noise (< 1mVrms, 5Hz~1MHz) are
maintained for channel 1 and 2 in constant voltage mode.
Automated cooling fan speed control minimizes fan noise
according to load conditions, ensuring quiet operation. The
GPS-Series is an ideal solution for lightweight, inexpensive
bench-top or portable applications requiring high regulation and
multiple outputs.
Features
- 2 / 3 / 4 independent isolated output
- 4.3-inch LCD display
- Recovery time: ≤ 100 µs (50% load change, minimum load 0.5 A)
- Setting & readback resolution: 10 mV / 1 mA
- Output ON / OFF control
- Analog control (Remote I/O) for output ON / OFF
- Key lock function
- Tracking series and parallel operation
- Optional European jack type terminal
