GGPE-3060/6030 Triple-Channel DC Power Supply

Description

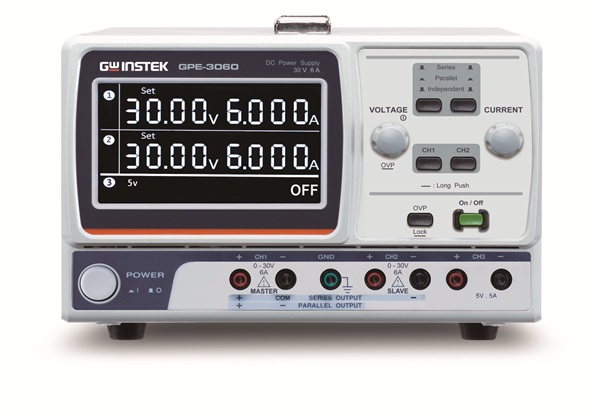

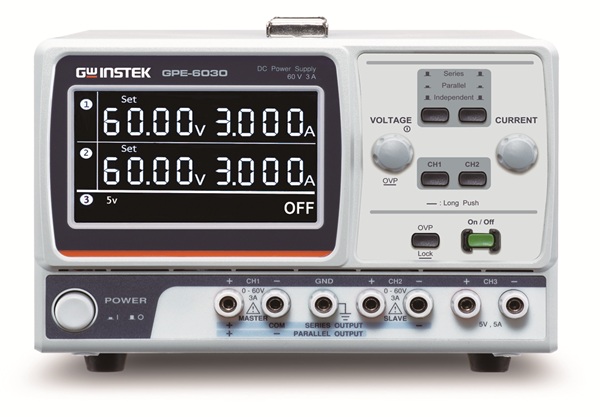

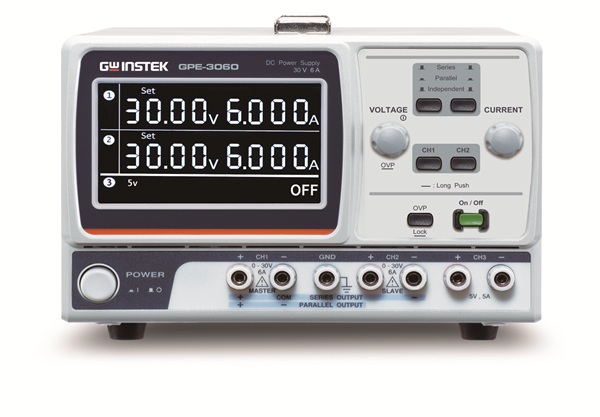

The GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. The primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.

With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid power supply design, which can save 13% of power consumption compared with the power consumption of the conventional linear power supplies. The volume and weight are significantly reduced in this series.

Features

• 1 / 2 / 3 independent isolated output channels
• GPE-3060 provides CH1/CH2: 0 ~ 30V / 0 ~ 6A output; CH3 supports 5.0V at 5A
• GPE-6030 supports CH1/CH2: 0 ~ 60V / 0 ~ 3A output; CH3 supports 5.0V at 5A
• Series / parallel tracking function
• High program resolution: 10 mV / 1 mA and measurement resolution: 30 mV / 10 mA
• Output On / Off function
• Simple analog control interface
• Multiple protection apparatuses such as overvoltage and overload protection functions
