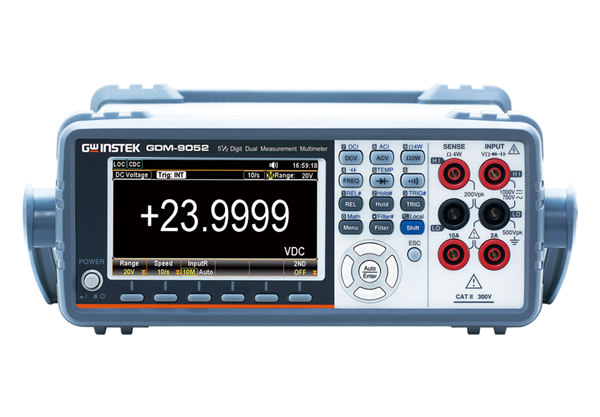

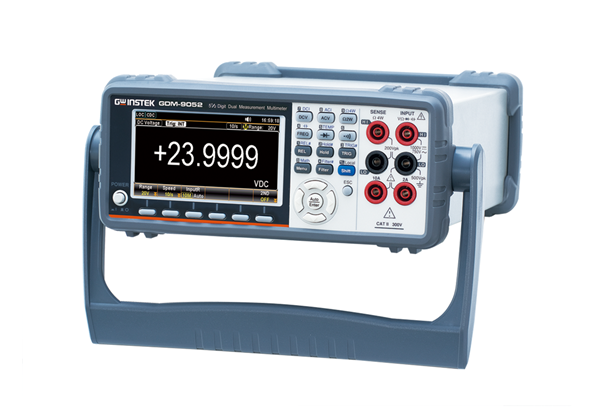

GDM-9052 Dual Measurement Multimeter

Description

GW Instek presents the new style 5 1/2 Digit Dual Measurement Multimeter─ GDM-9052 . GDM-9052 features LCD display, maximum 239,999 counts, 0.012 % basic DC voltage accuracy, A.I. measurement and USB/RS232C connectors to provide users with measurement precision, lucid data observation, and the convenient connection with the personal computer In addition to the fundamental measurement items such as AC/DC voltage, AC/DC current, AC+DC voltage/current, 2Wire/4Wire resistance, frequency, temperature measurement, continuity beeper and diode test, GDM-9052 is equipped with the capacitance measurement function. Furthermore, the GDM-9052 also provides many math functions, including maximum/minimum values, dB, dBm, compare, reading hold, algorithms (MX+B, 1/X, %) etc. to meet the measurement requirements for manufacturing process tests, educational experiments and testing facilities.

With respect to remote control and retrieving data, GDM-9052, taking consideration of users’ habitual practice and universal system interface, provides standard RS-232C and USB interface to edit control programs and read measurement results.

Features

• 5 1/2 Digit Display: 239,999 Counts max.
• 4.3' TFT Graphic LCD
• DCV Basic Accuracy: 0.012%
• A.I. Measurement offers automatic identification and measurement for Voltage, Resistance, Diode, and Continuity tests without the need for manual selection
• 12 different measurement Functions: AC/DC voltage, AC/DC current, 2-wire/4-wire Resistance, Frequency, Period, Diode, Continuity, Capacitance and Temperature
• True RMS (AC, AC+DC) measurements
• Dual Measurement Function to Providing Two Selected Measurement Simultaneously
• Many Math functions: Max./Min., REL/REL#, Compare, Hold, dB, dBm, MX+B, %, 1/X
• Digital I/O provides dual mode (standard Compare and User definition modes)

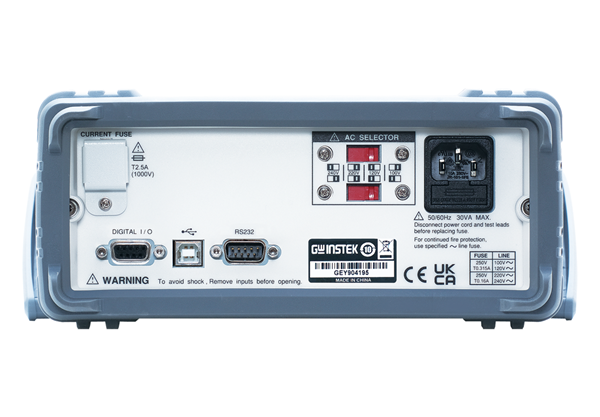

• Standard interfaces: RS-232C and USB device (support USBCDC and USBTMC modes)
