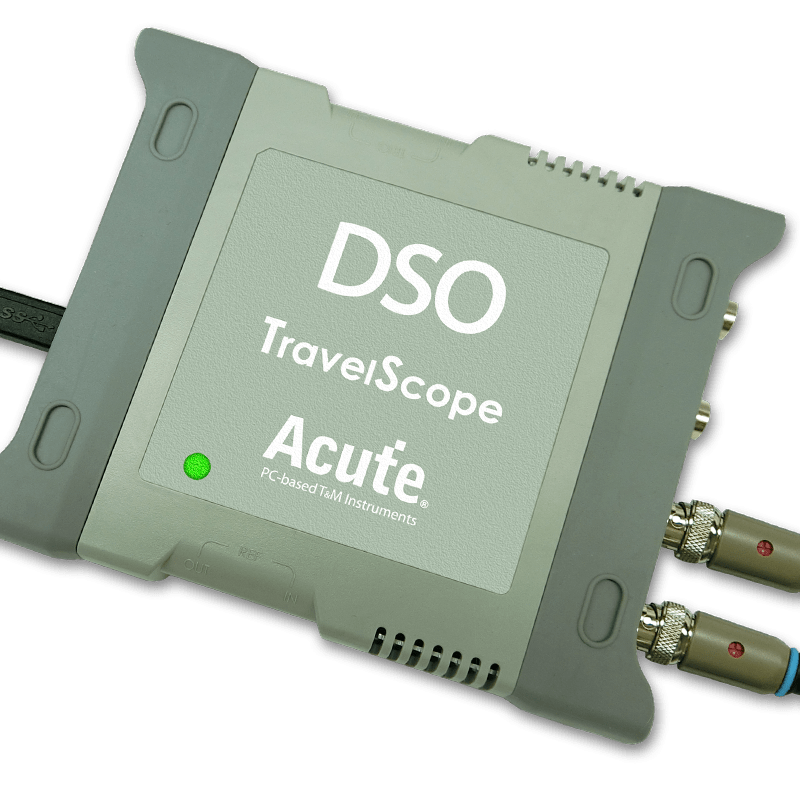

TS3124V Oscilloscope
Features
  • PC-based, USB3.0 interface/power supply (Type-A / Type-C)
  • Recording length: 128Mpts/ch
  • Data collector: long-term recording to computer hard drive
  • Channels: 4
  • Sampling rate: 1 GS/ s
  • Bandwidth: 200 MHz
  • Digital meter: 3 digits
  • Frequency counter: 5 digits
Features
  • PC-based, USB3.0 interface/power supply (Type-A / Type-C)
  • Recording length: 128Mpts/ch
  • Data collector: long-term recording to computer hard drive
  • Channels: 4
  • Sampling rate: 1 GS/ s
  • Bandwidth: 200 MHz
  • Digital meter: 3 digits
  • Frequency counter: 5 digits

The TS3000 series oscilloscope is lightweight, easy to carry, and suitable for on-site testing; it also has secondary development resources.

The TS3000 series oscilloscope is powered by a USB3.0 interface, which not only enables high-speed data transmission, but also eliminates the need for cumbersome power connections, making it easy for you to use. The TS3000 oscilloscope has 4 channels, a sampling rate of 1 GS/s and a bandwidth of 200 MHz. Each channel has a record length of 128Mpts. In addition, the TS3000 also provides a 3-digit electric meter and a 5-digit frequency counter. The TS3000 can cope with Multiple applications, monitor and analyze multiple signals simultaneously. Whether you are in electronic testing, communications or embedded system development, it can provide excellent and accurate signal analysis capabilities.

TS3124H has 16 bits high resolution and oscilloscope stacking function, which can capture very subtle signal changes and is suitable for applications that require high-precision measurement and analysis. The oscilloscope stacking function displays multiple waveforms at the same time for better signal comparison and analysis, which is suitable for It is very helpful to compare waveforms at different points in time or waveforms from different channels.

Analog specifications
power supply USB bus-power (+5V)
Static power consumption 4.5W
Instantaneous maximum power consumption 7.7W
capture mode Sample, Average, Envelope[*], Peak detect[*], High resolution
8 bits real-time sampling rate [record length] 1 Ch @ 1 GS/s [512 Mpts]; 2 Ch @ 500 MS/s [256 Mpts]; 4 Ch @ 250 MS/s [128 Mpts]
≧12 bits real-time sampling rate [record length] 1 Ch @ 500 MS/s [512 Mpts]; 2 Ch @ 250 MS/s [256 Mpts]; 4 Ch @ 125 MS/s [64 Mpts]
≧14 bits real-time sampling rate [record length] 1 Ch @ 100 MS/s [256 Mpts]; 2 Ch @ 100 MS/s [128 Mpts]; 4 Ch @ 100 MS/s [64 Mpts]
Input channel 4
Input coupling AC/DC
Input resistance 1 MΩ || <19 pF
Overvoltage protection ± 100 V (DC + AC peak)
Ch-Ch isolation 50dB @DC to 100MHz; 40dB @ 100MHz to 200MHz
Ch-Ch skew 100 ps between two channels with the same scale & coupling settings
Bandwidth 200MHz
Rise Time 1.75 ns @ 200 MHz; 3.5 ns @ 100 MHz; 7 ns @ 50 MHz
Resolution 8, 12, 14, 15, 16 bits
Enter scale 2 mV/div to 10 V/div
Offset range ±150 V @ 2, 5, 10 V/div;
±15 V @ 0.2, 0.5, 1 V/div;
±1.5 V @ 2, 5, 10, 20, 50, 100 mV/div
DC accuracy ±3% of full scale
Bandwidth limitation 20 MHz, 100 MHz or no limit
Bus decode/trigger BiSS-C, CAN 2.0B/CAN FD, DALI, DP_Aux, HID over I2C, I2C, I2S, LIN2.2, MDIO, Mini/Micro LED, MIPI I3C 1.1, MIPI RFFE 3, MIPI SPMI 2, Modbus, PMBus, ProfiBus, SENT, SMBus, SPI, SVI2, UART, USB PD 3, USB1.1
Electrical Characteristics Verification N/A
Oscilloscope stacking 16Ch
