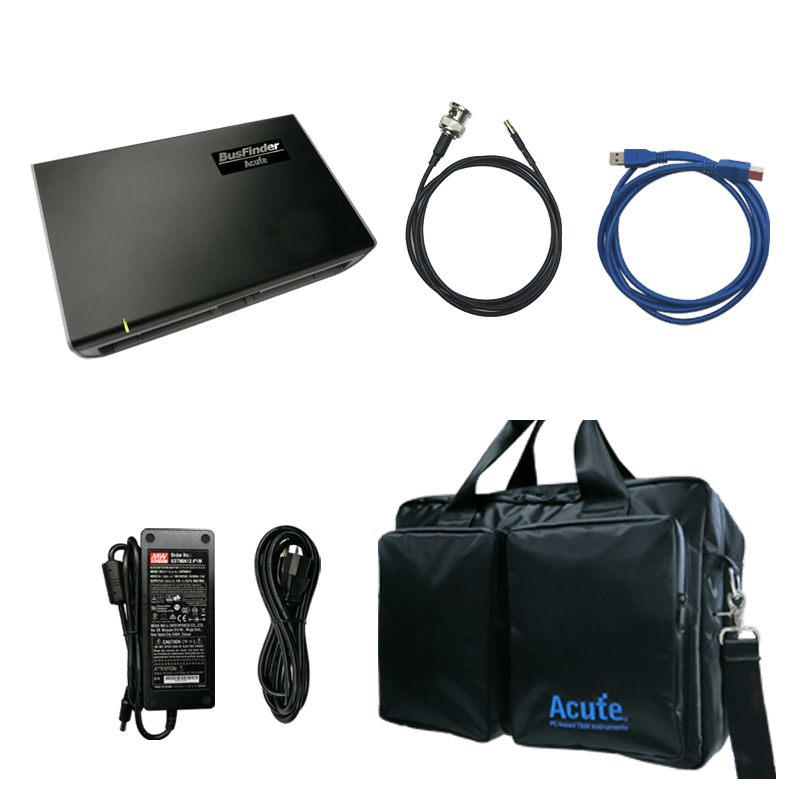

BF7264B Protocol Analyzer
Features
  • Data collection mode

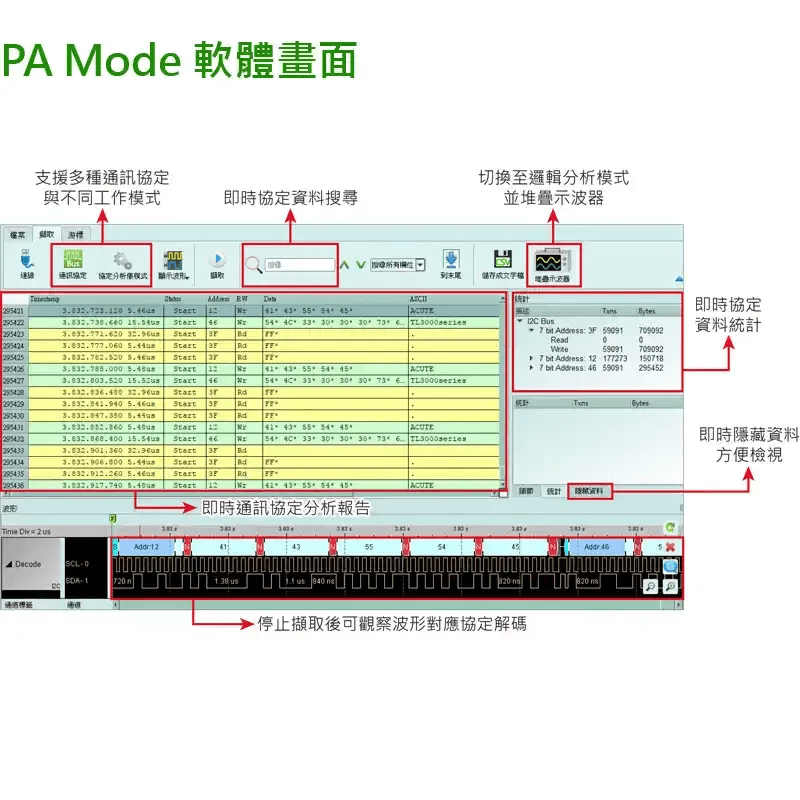

  • Data monitoring mode
  • 64-channel logic analyzer
  • 32Gb total memory protocol analyzer
  • Protocol analyzer options: UFS2.1, eDP1.4a, eMMC 5.1, MIPI D-PHY 1.2, NAND Flash, SD 3.0 (SDIO 3.0), SD 4.1 (UHS-II), SGMII
  • Dedicated active probes for different protocols to facilitate wiring and optimize impedance matching
  • Protocol recorder stores long-term protocol data
Features
  • Data collection mode
  • Data monitoring mode
  • 64-channel logic analyzer
  • 32Gb total memory protocol analyzer
  • Protocol analyzer options: UFS2.1, eDP1.4a, eMMC 5.1, MIPI D-PHY 1.2, NAND Flash, SD 3.0 (SDIO 3.0), SD 4.1 (UHS-II), SGMII
  • Dedicated active probes for different protocols to facilitate wiring and optimize impedance matching
  • Protocol recorder stores long-term protocol data
Description

The protocol analyzer is used to analyze packet data of various communication protocols. It can monitor in real time, record for a long time, and monitor cyclically. It is simple and convenient to operate. The product line has specifications with different storage depths, as well as a variety of special measurement probes to facilitate measurement.

Digital specifications
power supply 12V Power adapter
Static power consumption 18W
Instantaneous maximum power consumption 45W
Transmission interface USB 3.0
Timing analysis (asynchronous, highest sampling rate) 2.4GHz
Status analysis (synchronization, external clock) 300MHz
Data storage method Sampling timing, transition timing
Aisle 64
Total memory 32GB
Timing analysis Number of available channels (traditional timing/transition timing) - memory per channel
2GHz timing [number of channels available] - memory per channel [32/28]-1Gb
1GHz timing [number of channels available] - memory per channel [64/56]-500Mb
500MHz timing [number of channels available] - memory per channel [64/ 64]-500Mb
250MHz timing [number of channels available] - memory per channel [64/ 64]-500Mb
Inter-channel phase error < 500 ps
Input voltage channel N/A
Input voltage impedance Please refer to Tip specification sheet
Non-maximum destructive withstand voltage N/A
Input voltage operating range Please refer to Tip specification sheet
Input voltage sensitivity Please refer to Tip specification sheet
Trigger voltage group Please refer to Tip specification sheet
Trigger voltage range Please refer to Tip specification sheet
Trigger voltage resolution Please refer to Tip specification sheet
Reference voltage accuracy N/A
Trigger resolution Please refer to Tip specification sheet
Trigger type Channel, tag trigger, single/multiple stages, width, timeout, external trigger
Bus trigger Shop LA Probe: eMMC 5.1, NAND Flash, SD 3.0 (SDIO 3.0), Serial Flash (SPI NAND),
Agreement analysis Optional solutions: eDP1.5, eMMC 5.1, MIPI D-PHY 1.2, NAND Flash, SD 3.0(SDIO 3.0), SD 4.1 (UHS-II), SGMII
