SRS System SMD Rework
Description

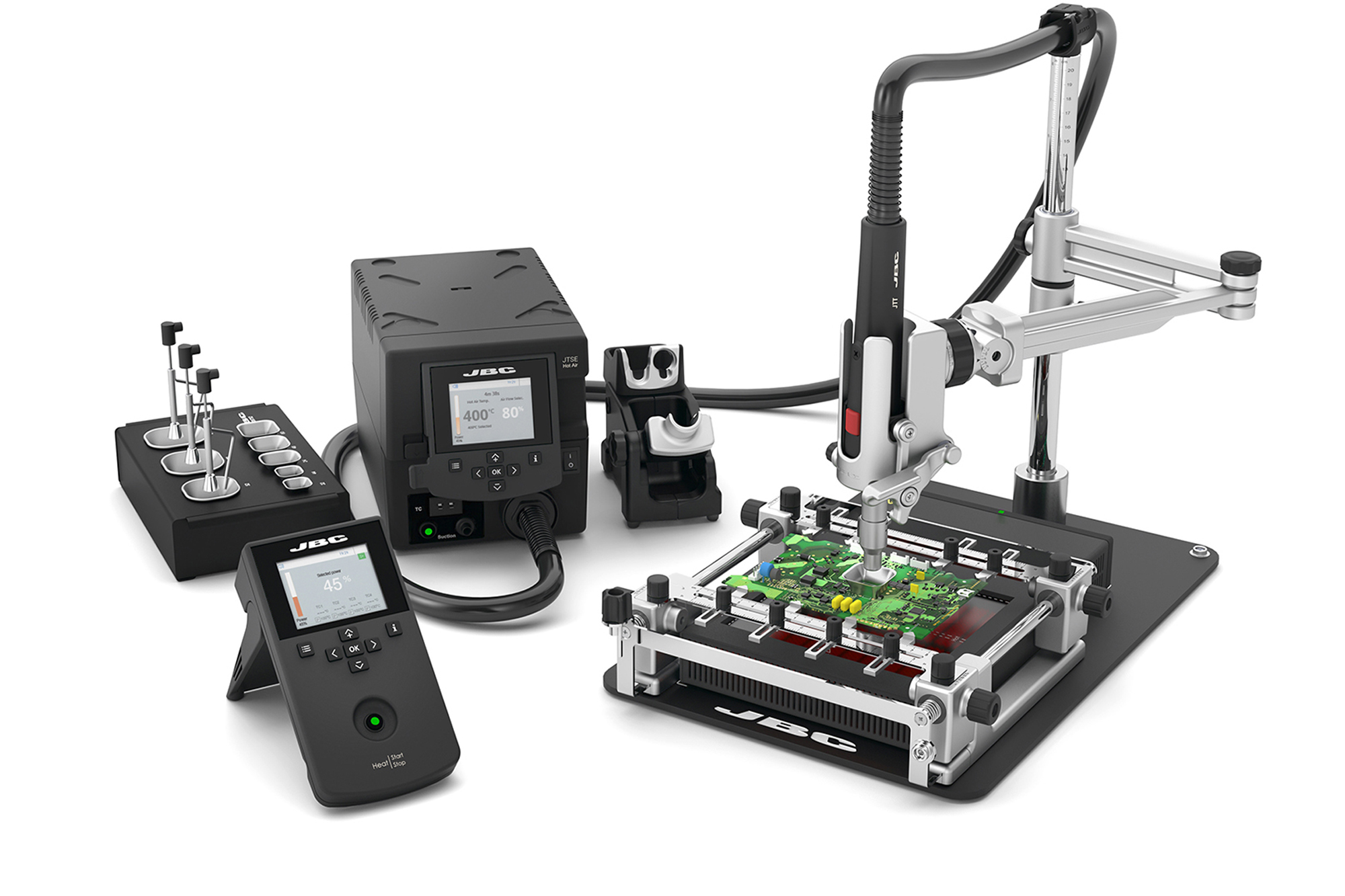

SRS SMD Rework System provides full control over SMD rework processes.

JTSE Hot Air Station controls the rework task using temperature and air flow profiles.

RWS Rework Arm supports the JTT Heater Hose Set, allowing handsfree operation.

PHSEK Small Preheater Set comes with PHSE Small Preheater and PHSS Small PCB Support.

A variety of Protectors, Extractors and Tripods are included.

Description

SRS SMD Rework System provides full control over SMD rework processes.

JTSE Hot Air Station controls the rework task using temperature and air flow profiles.

RWS Rework Arm supports the JTT Heater Hose Set, allowing handsfree operation.

PHSEK Small Preheater Set comes with PHSE Small Preheater and PHSS Small PCB Support.

A variety of Protectors, Extractors and Tripods are included.

Specifications
JTSE Control Unit
Peak power 700W
Selectable temperature 150 to 450°C / 300 to 840°F
Air flow regulation 5 to 50 SLPM
Vacuum 30% / 228 mmHg / 9 inHg
Profiles 25 (up to 10 steps for each), 1 preset profile
Type K TC connector 1 for Control & Protection
ESD safe Meet ANSI / ESD S20.20-2021
Equipotential bonding Connection to EPA
USB-A Firmware update Graphics and profiles
USB-B PC communications
Robot connector Remote control or FAE Fume Extractor connection
Pedal Connector Tool control
PHSE Preheater
Peak power 600W
Selectable temperature 50 to 250ºC / 120 to 482ºF
Heating area 65 x 135 mm / 2.6 x 5.3 in - 1 zone
130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector 4 for control & protection
Profiles 22 (up to 6 steps for each), 3 preset profiles
Maximum work time 600 min. or indefinite
ESD safe Meet ANSI/ESD S20.20-2021
USB-A Firmware update Graphics and profiles
USB-B PC communications
Robot connector Remote control
Aux. connector Console connection
Pedal connector Connect a pedal (ref. P-005) to control the heater
Weight and Dimensions
Control Unit 232 x 148 x 160 mm / 16.59 kg.
9.13 x 5.83 x 6.30 in / 36.57 lb.
Package 700 x 410 x 390 mm / 23.10 kg.
27.56 x 16.14 x 15.35 in / 50.93 lb.

Specifications
JTSE Control Unit
Peak power 700W
Selectable temperature 150 to 450°C / 300 to 840°F
Air flow regulation 5 to 50 SLPM
Vacuum 30% / 228 mmHg / 9 inHg
Profiles 25 (up to 10 steps for each), 1 preset profile
Type K TC connector 1 for Control & Protection
ESD safe Meet ANSI / ESD S20.20-2021
Equipotential bonding Connection to EPA
USB-A Firmware update Graphics and profiles
USB-B PC communications
Robot connector Remote control or FAE Fume Extractor connection
Pedal Connector Tool control
PHSE Preheater
Peak power 600W
Selectable temperature 50 to 250ºC / 120 to 482ºF
Heating area 65 x 135 mm / 2.6 x 5.3 in - 1 zone 130 x 135 mm / 5.1 x 5.3 in - 2 zones
Type K TC connector 4 for control & protection
Profiles 22 (up to 6 steps for each), 3 preset profiles
Maximum work time 600 min. or indefinite
ESD safe Meet ANSI/ESD S20.20-2021
USB-A Firmware update Graphics and profiles
USB-B PC communications
Robot connector Remote control
Aux. connector Console connection
Pedal connector Connect a pedal (ref. P-005) to control the heater
Weight and Dimensions
Control Unit 232 x 148 x 160 mm / 16.59 kg. 9.13 x 5.83 x 6.30 in / 36.57 lb.
Package 700 x 410 x 390 mm / 23.10 kg. 27.56 x 16.14 x 15.35 in / 50.93 lb.
