GPS-Series Linear D.C. Power Supply
Features
- Light and Compact Design
- 0.01% High Regulation
- Constant Voltage and Constant Current
Operation
- Remote Control for External
Programmability
- Internal Select for Continuous or Dynamic
Load
- Low Ripple and Noise
- Overload and Reverse Polarity
Protection
- Series or Parallel Operation
- Optional European Type Jack Terminal for
GPS-3030/GPS-3030D/GPS-3030DD
Description
The GPS-Series is
single output, 54 to 90W, linear DC power supplies.
The GPS-Series includes both analog and digital display meters with
varying power outputs. The GPS-Series features Overload
and reverse polarity protection as well as high regulation and low
ripple / noise that are maintained at 0.01% and < 1mVrms,
respectively. Continuous or dynamic internal load selection
accommodates applications such as pulsed current. Remote control
terminals offer programming and operation from an external
device.
| SELECTION GUIDE |
|
Display Meter |
Output Watts (W) |
Output Volts (V) |
Output Amps (A) |
Weight (kg) |
| GPS-3030 |
Analog |
90W |
0 ~ 30 |
0 ~ 3 |
5 |
| GPS-1830D |
Digital |
54W |
0 ~ 18 |
0 ~ 3 |
4 |
| GPS-1850D |
Digital |
90W |
0 ~ 18 |
0 ~ 5 |
5 |

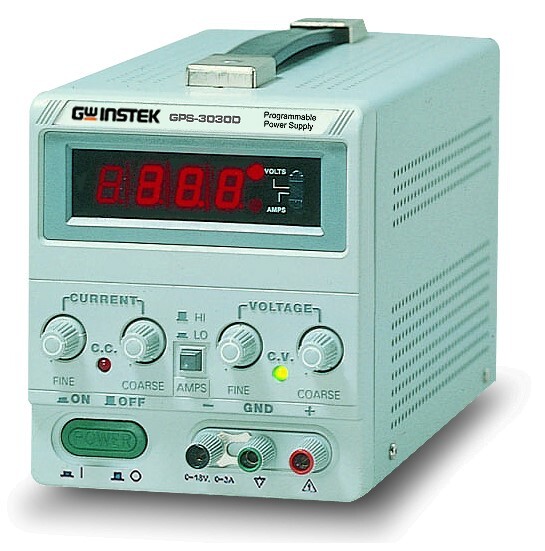

| GPS-3030D |
Digital |
90W |
0 ~ 30 |
0 ~ 3 |
5 |

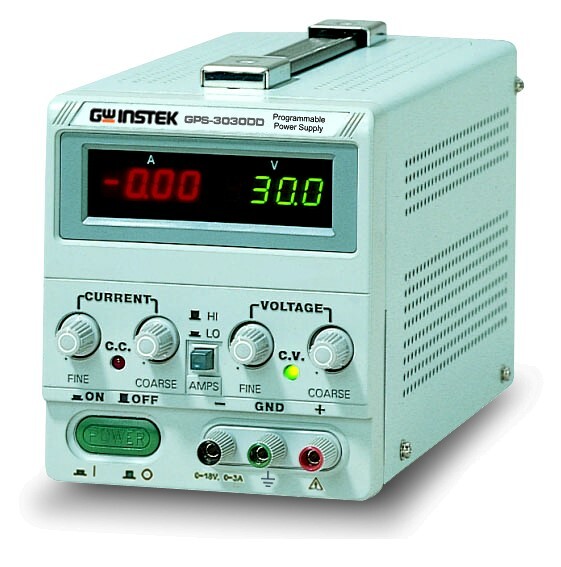

| GPS-3030DD |
Digital |
90W |
0 ~ 30 |
0 ~ 3 |
5 |
Description
The GPS-Series is
single output, 54 to 90W, linear DC power supplies.
The GPS-Series includes both analog and digital display meters with
varying power outputs. The GPS-Series features Overload
and reverse polarity protection as well as high regulation and low
ripple / noise that are maintained at 0.01% and < 1mVrms,
respectively. Continuous or dynamic internal load selection
accommodates applications such as pulsed current. Remote control
terminals offer programming and operation from an external
device.
| SELECTION GUIDE |
|
Display Meter |
Output Watts (W) |
Output Volts (V) |
Output Amps (A) |
Weight (kg) |
| GPS-3030 |
Analog |
90W |
0 ~ 30 |
0 ~ 3 |
5 |
| GPS-1830D |
Digital |
54W |
0 ~ 18 |
0 ~ 3 |
4 |
| GPS-1850D |
Digital |
90W |
0 ~ 18 |
0 ~ 5 |
5 |
| GPS-3030D |
Digital |
90W |
0 ~ 30 |
0 ~ 3 |
5 |
| GPS-3030DD |
Digital |
90W |
0 ~ 30 |
0 ~ 3 |
5 |
Features
- Light and Compact Design
- 0.01% High Regulation
- Constant Voltage and Constant Current
Operation
- Remote Control for External
Programmability
- Internal Select for Continuous or Dynamic
Load
- Low Ripple and Noise
- Overload and Reverse Polarity
Protection
- Series or Parallel Operation
- Optional European Type Jack Terminal for
GPS-3030/GPS-3030D/GPS-3030DD
