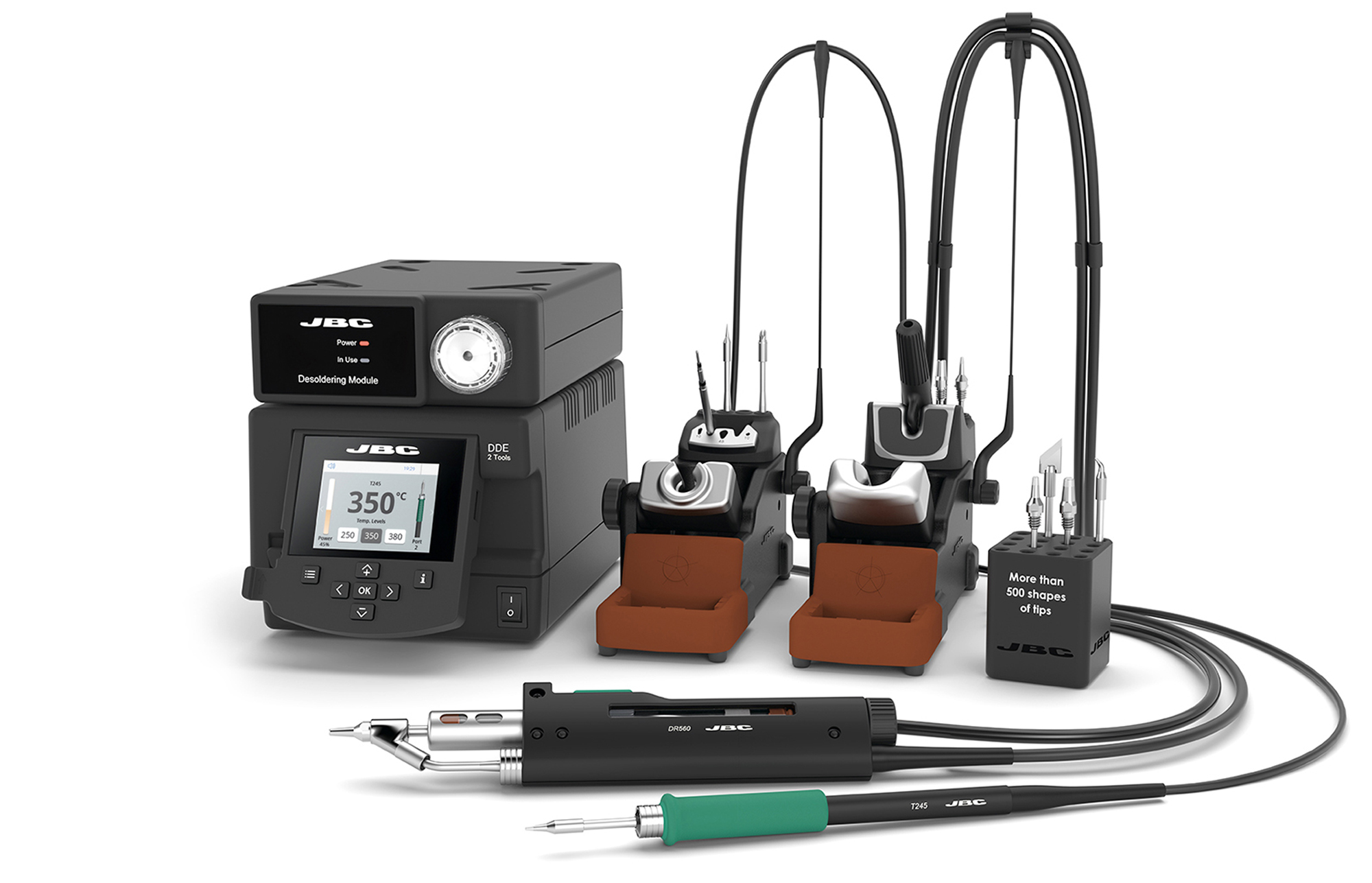

DDSE Station 2-Tool Rework
Description
The complete solution to rework circuits with medium power requirement.
Equipped with T245 General Purpose Handle and DR560 Desoldering Iron.
Its DDE 2-Tool Control Unit is capable of manage up to 2 tools
simultaneously and fully compatible with 10 different JBC tools.
It provides the best rework quality thanks to JBC Most Efficient
Soldering System and, additionally, the intelligent Sleep & Hibernation
Modes help to extend life of tips.
Description
The complete solution to rework circuits with medium power requirement.
Equipped with T245 General Purpose Handle and DR560 Desoldering Iron.
Its DDE 2-Tool Control Unit is capable of manage up to 2 tools
simultaneously and fully compatible with 10 different JBC tools.
It provides the best rework quality thanks to JBC Most Efficient
Soldering System and, additionally, the intelligent Sleep & Hibernation
Modes help to extend life of tips.
Specifications
| Specification
|
| Nominal power |
370W |
| Peak power |
150 W per tool |
| Selectable temperature |
90 to 450ºC / 190 to 840ºF |
| Idle temp. stability (still air) |
±1.5ºC / ±3ºF / Meets and exceeds IPC J-STD-001F |
| Vacuum |
75% / 570 mmHg / 22.4 inHg |
| Flow rate |
9 SLPM |
| Temperature accuracy |
±3% |
| Temp. adjustment |
±50ºC / ±90ºF Through station menu setting |
| Tip-to-ground resistance |
<2 ohms |
| Tip-to-ground voltage |
<2 mV RMS |
| USB-A |
Firmware update Graphics and profiles |
| USB-B |
PC communications |
| FAE / Robot connector |
Remote control or FAE Fume Extractor connection |
| ESD safe |
Meet ANSI/ESD S20.20-2021 |
| Weight and Dimensions
|
| Control Unit |
232 x 148 x 120 mm / 8.67 kg.
9.13 x 5.83 x 4.72 in / 19.11 lb. |
| Package |
525 x 318 x 347 mm / 12.40 kg.
20.67 x 12.52 x 13.66 in / 27.34 lb. |
